SQDMetal Component gallery
This notebook provides a minimum working examples of all available components in SQDMetal. Note:
The code can be copied and pasted as a template
The
importstatement is in the first line while the code for the main component(s) is enclosed within the comments###The options in the demonstrations are NOT exhaustive. Full list of parameters for finer adjustments can be found in the docstring (e.g. just run
CapacitorInterdigital?)
Basic components include:
Capacitors
Interdigital capacitors
Gap capacitors
Gap meander capacitors
Prong capacitors on pin
Inductors
Meander inductors
Resonators
Meander resonators
-
Dicing cross

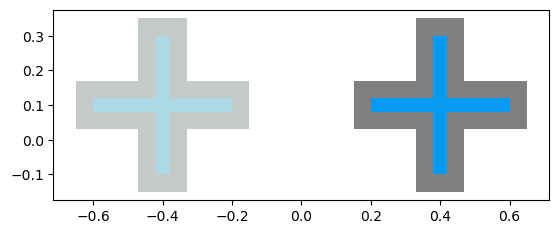

Square marker

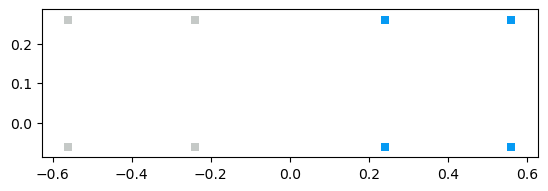

Quadruple square marker
-
Rectangular patches
Tapered patches
Specialised routing constructs to ease wiring and positioning:
-
Basic isolated pin
Extending pin off another pin
Pin on side of wire/routing object
-
Wire extending off a pin
Manual wire routing through pins
Parallel connecting S-elbow wire
Single elbow connector
Wire taper (to change wire size)
Qubit-related components include:
-

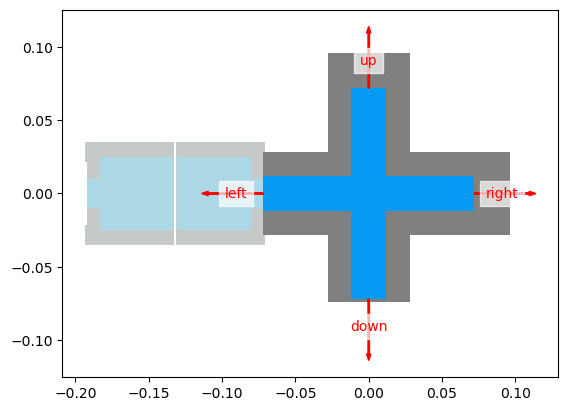

Basic Xmon
-
T-junction flux line

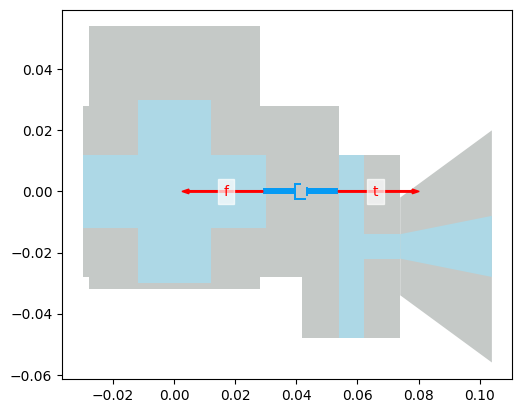

Josephson junctions
Dolan bridge
Asymmetric Dolan bridge
More specialised structures include:
To regenerate this notebook, run this initialisation cell first.
[1]:
%load_ext autoreload
%autoreload 2
from qiskit_metal import designs
from SQDMetal.Utilities.QUtilities import QUtilities
import matplotlib.pyplot as plt
import numpy as np
from qiskit_metal.toolbox_python.attr_dict import Dict
design = designs.DesignPlanar({}, overwrite_enabled=True)
%matplotlib inline
Capacitors

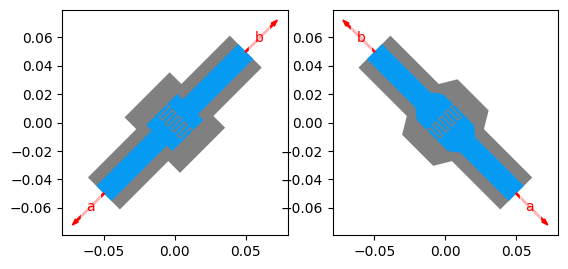

Interdigital capacitors
Using absolute coordinates
[2]:
from SQDMetal.Comps.Capacitors import CapacitorInterdigital
design.delete_all_components()
fig, axs = plt.subplots(ncols=2)
##FLAT EDGES##############
CapacitorInterdigital(design, 'leCap', options=dict(pos_x='-50um', pos_y='-50um', end_x='50um' , end_y='50um',
cpw_width='15um', len_flat='10um', fing_len='10um', fing_len_gap='1um', fing_wid='2um',
len_diag=0, init_pad='7um', fing_wid_gap='1um', N_total=9, larger_first=True))
##########################
QUtilities.plot_highlight_component('leCap', design, ax=axs[0])
design.delete_all_components()
##DIAGONAL EDGES##########
CapacitorInterdigital(design, 'leCap', options=dict(pos_x='50um', pos_y='-50um', end_x='-50um' , end_y='50um',
cpw_width='15um', len_flat='10um', fing_len='10um', fing_len_gap='1um', fing_wid='2um',
len_diag='7um', fing_wid_gap='1um', N_total=9, larger_first=True))
##########################
QUtilities.plot_highlight_component('leCap', design, ax=axs[1])
Using relative coordinates
[3]:
from SQDMetal.Comps.Capacitors import CapacitorInterdigitalPinStretch
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='45', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
##########################
CapacitorInterdigitalPinStretch(design, 'leCap', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'LP1',pin='tie')), dist_extend='100um',
cpw_width='15um', len_flat='10um', fing_len='10um', fing_len_gap='1um', fing_wid='2um',
len_diag='7um', fing_wid_gap='1um', N_total=9, larger_first=True))
##########################
QUtilities.plot_highlight_component('leCap', design)
Using pins (it doesn’t draw the leads and requires wiring constructs as shown in the second image)
[4]:
from SQDMetal.Comps.Capacitors import CapacitorInterdigitalPinPin
from SQDMetal.Comps.Wires import WirePins
from SQDMetal.Comps.Joints import JointExtend
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='30', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
LaunchpadWirebond(design, 'LP2', options = dict(pos_x='150um', pos_y='150um', orientation='-150', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
fig, axs = plt.subplots(ncols=2); fig.set_figwidth(11)
JointExtend(design, 'jnt1', options=Dict(jointObj='LP1', jointPin='tie', dist_extend='20um', extend_off_pin_dir=True))
JointExtend(design, 'jnt2', options=Dict(jointObj='LP2', jointPin='tie', dist_extend='20um', extend_off_pin_dir=True))
##########################
CapacitorInterdigitalPinPin(design, 'leCap', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'jnt1',pin='a'), end_pin=Dict(component=f'jnt2',pin='a')),
cpw_width='15um', len_flat='10um', fing_len='10um', fing_len_gap='4um', fing_wid='4um',
len_diag='10um', fing_wid_gap='4um', N_total=5, larger_first=True))
##########################
QUtilities.plot_highlight_component('leCap', design, ax=axs[0])
WirePins(design, 'lead1', options=Dict(pathObjPins=[('LP1', 'tie'), 'jnt1', ('leCap', 'a')], fillet='10um'))
WirePins(design, 'lead2', options=Dict(pathObjPins=[('LP2', 'tie'), 'jnt2', ('leCap', 'b')], fillet='10um'))
QUtilities.plot_highlight_component('leCap', design, ax=axs[1])
Gap capacitors
Using absolute coordinates
[5]:
from SQDMetal.Comps.Capacitors import CapacitorGap
design.delete_all_components()
fig, axs = plt.subplots(ncols=3); fig.set_figwidth(11)
##FLAT EDGES##############
CapacitorGap(design, 'leCap', options=dict(pos_x='-50um', pos_y='-50um', end_x='50um' , end_y='50um',
cpw_width='10um', cap_width='40um', len_flat='10um',
len_diag=0, init_pad='7um', cap_gap='7um', gnd_width='1um'))
##########################
QUtilities.plot_highlight_component('leCap', design, ax=axs[0])
design.delete_all_components()
##OFFSET LEADS############
CapacitorGap(design, 'leCap', options=dict(pos_x='-50um', pos_y='-50um', end_x='50um' , end_y='50um',
cpw_width='10um', cap_width='40um', len_flat='10um',
len_diag=0, init_pad='7um', cap_gap='7um', gnd_width='1um',
offset_lead1='2um', offset_lead2='10um'))
##########################
QUtilities.plot_highlight_component('leCap', design, ax=axs[1])
design.delete_all_components()
##DIAGONAL EDGES##########
CapacitorGap(design, 'leCap', options=dict(pos_x='-50um', pos_y='-50um', end_x='50um' , end_y='50um',
cpw_width='10um', cap_width='40um', len_flat='10um',
len_diag='20um', init_pad='7um', cap_gap='7um', gnd_width='1um'))
##########################
QUtilities.plot_highlight_component('leCap', design, ax=axs[2])

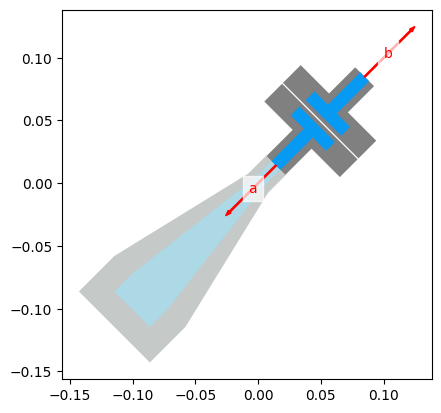

Using relative coordinates
[6]:
from SQDMetal.Comps.Capacitors import CapacitorGapPinStretch
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='45', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
##########################
CapacitorGapPinStretch(design, 'leCap', options=dict(pin_inputs=Dict(start_pin=Dict(component=f'LP1',pin='tie')), dist_extend='100um',
cpw_width='10um', cap_width='40um', len_flat='10um',
len_diag=0, init_pad='7um', cap_gap='7um', gnd_width='1um'))
##########################
QUtilities.plot_highlight_component('leCap', design)
Using pins (it doesn’t draw the leads and requires wiring constructs as shown in the second image)
[7]:
from SQDMetal.Comps.Capacitors import CapacitorGapPinPin
from SQDMetal.Comps.Wires import WirePins
from SQDMetal.Comps.Joints import JointExtend
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='30', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
LaunchpadWirebond(design, 'LP2', options = dict(pos_x='150um', pos_y='150um', orientation='-150', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
fig, axs = plt.subplots(ncols=2); fig.set_figwidth(11)
JointExtend(design, 'jnt1', options=Dict(jointObj='LP1', jointPin='tie', dist_extend='20um', extend_off_pin_dir=True))
JointExtend(design, 'jnt2', options=Dict(jointObj='LP2', jointPin='tie', dist_extend='20um', extend_off_pin_dir=True))
##########################
CapacitorGapPinPin(design, 'leCap', options=dict(pin_inputs=Dict(start_pin=Dict(component=f'jnt1',pin='a'), end_pin=Dict(component=f'jnt2',pin='a')),
cpw_width='10um', cap_width='40um', len_flat='10um',
len_diag=0, init_pad='7um', cap_gap='7um', gnd_width='1um'))
##########################
QUtilities.plot_highlight_component('leCap', design, ax=axs[0])
WirePins(design, 'lead1', options=Dict(pathObjPins=[('LP1', 'tie'), 'jnt1', ('leCap', 'a')], fillet='10um'))
WirePins(design, 'lead2', options=Dict(pathObjPins=[('LP2', 'tie'), 'jnt2', ('leCap', 'b')], fillet='10um'))
QUtilities.plot_highlight_component('leCap', design, ax=axs[1])

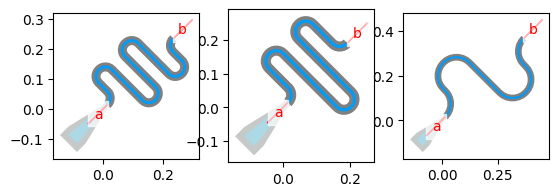

Gap meander capacitors
Using absolute coordinates
[8]:
from SQDMetal.Comps.Capacitors import CapacitorGapMeander
design.delete_all_components()
##########################
CapacitorGapMeander(design, 'leCap', options=dict(pos_x='-50um', pos_y='-50um', end_x='50um' , end_y='50um',
cpw_width='10um', cap_width='40um', cap_length='40um',
init_pad='7um', side_gap='7um',
mean_total_length='70um', mean_constr_radius='2um',
mean_gnd_width='1um', mean_gnd_gap='1um',
mean_constr_width_max=0, mean_fillet_padding='5um'))
##########################
QUtilities.plot_highlight_component('leCap', design)
Using relative coordinates
[9]:
from SQDMetal.Comps.Capacitors import CapacitorGapMeanderPinStretch
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='45', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
##########################
CapacitorGapMeanderPinStretch(design, 'leCap', options=dict(pin_inputs=Dict(start_pin=Dict(component=f'LP1',pin='tie')), dist_extend='100um',
cpw_width='10um', cap_width='40um', cap_length='40um',
init_pad='7um', side_gap='7um',
mean_total_length='70um', mean_constr_radius='2um',
mean_gnd_width='1um', mean_gnd_gap='1um',
mean_constr_width_max=0, mean_fillet_padding='5um'))
##########################
QUtilities.plot_highlight_component('leCap', design)

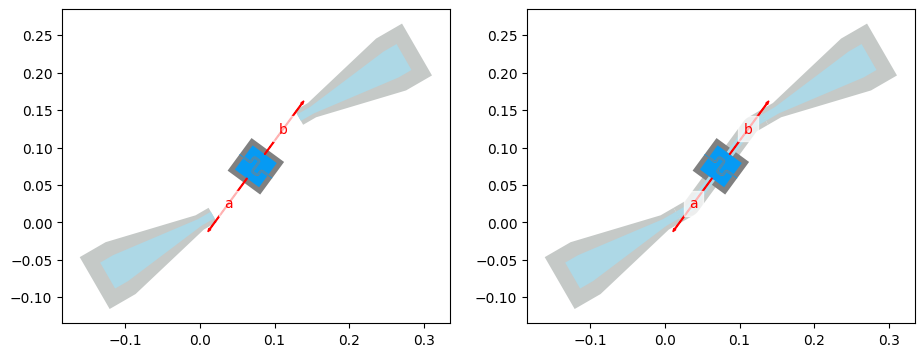

Using pins (it doesn’t draw the leads and requires wiring constructs as shown in the second image)
[10]:
from SQDMetal.Comps.Capacitors import CapacitorGapMeanderPinPin
from SQDMetal.Comps.Wires import WirePins
from SQDMetal.Comps.Joints import JointExtend
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='30', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
LaunchpadWirebond(design, 'LP2', options = dict(pos_x='150um', pos_y='150um', orientation='-150', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
fig, axs = plt.subplots(ncols=2); fig.set_figwidth(11)
JointExtend(design, 'jnt1', options=Dict(jointObj='LP1', jointPin='tie', dist_extend='20um', extend_off_pin_dir=True))
JointExtend(design, 'jnt2', options=Dict(jointObj='LP2', jointPin='tie', dist_extend='20um', extend_off_pin_dir=True))
##########################
CapacitorGapMeanderPinPin(design, 'leCap', options=dict(pin_inputs=Dict(start_pin=Dict(component=f'jnt1',pin='a'), end_pin=Dict(component=f'jnt2',pin='a')),
cpw_width='10um', cap_width='40um', cap_length='40um',
init_pad='7um', side_gap='7um',
mean_total_length='70um', mean_constr_radius='2um',
mean_gnd_width='1um', mean_gnd_gap='1um',
mean_constr_width_max=0, mean_fillet_padding='5um'))
##########################
QUtilities.plot_highlight_component('leCap', design, ax=axs[0])
WirePins(design, 'lead1', options=Dict(pathObjPins=[('LP1', 'tie'), 'jnt1', ('leCap', 'a')], fillet='10um'))
WirePins(design, 'lead2', options=Dict(pathObjPins=[('LP2', 'tie'), 'jnt2', ('leCap', 'b')], fillet='10um'))
QUtilities.plot_highlight_component('leCap', design, ax=axs[1])

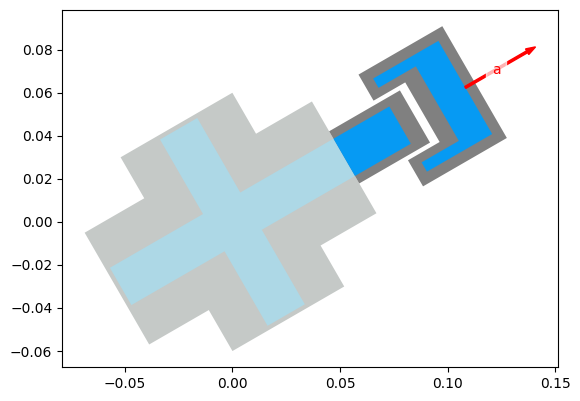

Prong capacitors on pin
Simple prong capacitor
[11]:
from SQDMetal.Comps.Capacitors import CapacitorProngPin
from SQDMetal.Comps.Xmon import Xmon
design.delete_all_components()
Xmon(design, 'xmon', options=Dict(orientation=30))
##########################
CapacitorProngPin(design, 'leCap', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'xmon',pin='right')),
prong_width='4um', prong_length='10um', pin_gap_side='4um',
gap_side='10um', pad_thickness='20um',
gap_front='10um', gap_back='5um', trace_width='10um'))
##########################
QUtilities.plot_highlight_component('leCap', design)

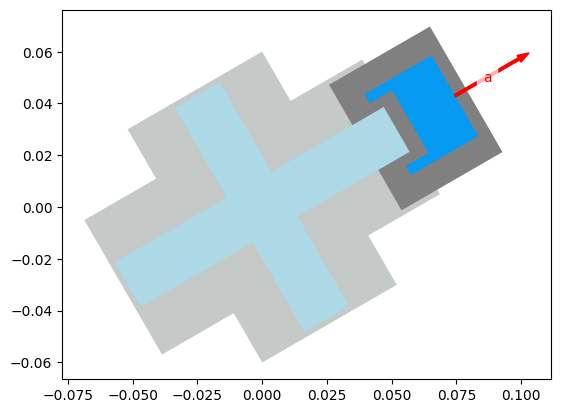

Prong capacitor with ground-plane going in between:
[12]:
from SQDMetal.Comps.Capacitors import CapacitorUcapGroundPin
from SQDMetal.Comps.Xmon import Xmon
design.delete_all_components()
Xmon(design, 'xmon', options=Dict(orientation=30, gap_right=0))
##########################
CapacitorUcapGroundPin(design, 'leCap', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'xmon',pin='right')),
prong_trace_gap='10um', pad_trace_gap='20um',
prong_width='5um', prong_length='20um',
gnd_prong_trace='2um', gnd_pad_trace='4um',
pad_thickness='15um'))
##########################
QUtilities.plot_highlight_component('leCap', design)
Inductors
Meander inductors
Using absolute coordinates
[13]:
from SQDMetal.Comps.Inductors import InductorMeander
design.delete_all_components()
fig, axs = plt.subplots(ncols=2)
##NO INITIAL GAP##########
InductorMeander(design, 'leInd', options=dict(pos_x='-50um', pos_y='-50um', end_x='50um' , end_y='50um',
track_width='2um', meander_spacing='4um', meander_width='30um', num_long_sections=30,
init_gap=0, mean_gap='5um'))
##########################
QUtilities.plot_highlight_component('leInd', design, ax=axs[0])
design.delete_all_components()
##INITIAL GAP#############
InductorMeander(design, 'leInd', options=dict(pos_x='-50um', pos_y='-50um', end_x='50um' , end_y='50um',
track_width='2um', meander_spacing='4um', meander_width='30um', num_long_sections=30,
init_gap='5um', mean_gap='5um'))
##########################
QUtilities.plot_highlight_component('leInd', design, ax=axs[1])

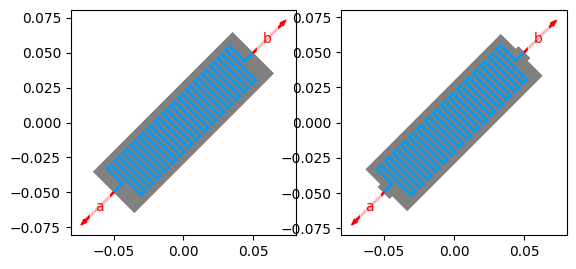

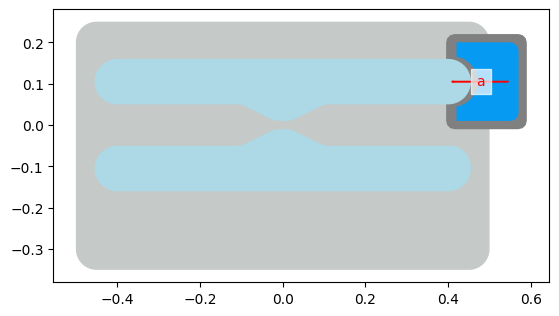

Using relative coordinates
[14]:
from SQDMetal.Comps.Inductors import InductorMeanderPinStretch
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='45', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
##########################
InductorMeanderPinStretch(design, 'leInd', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'LP1',pin='tie')), dist_extend='200um',
track_width='2um', meander_spacing='4um', meander_width='30um', num_long_sections=30,
init_gap=0, mean_gap='5um'))
##########################
QUtilities.plot_highlight_component('leInd', design)

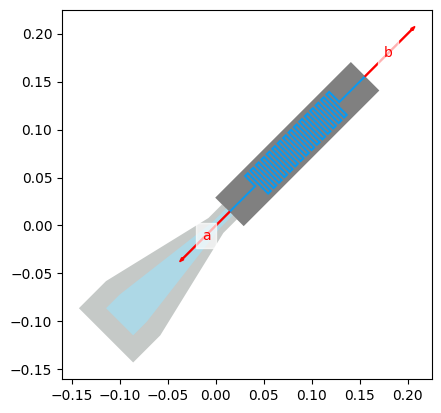

Using pins
[15]:
from SQDMetal.Comps.Inductors import InductorMeanderPinPin
from SQDMetal.Comps.Wires import WirePins
from SQDMetal.Comps.Joints import JointExtend
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='30', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
LaunchpadWirebond(design, 'LP2', options = dict(pos_x=f'{0.866*150}um', pos_y='75um', orientation='-150', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
##########################
InductorMeanderPinPin(design, 'leInd', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'LP1',pin='tie'), end_pin=Dict(component=f'LP2',pin='tie')),
track_width='2um', meander_spacing='4um', meander_width='30um', num_long_sections=10,
init_gap=0, mean_gap='5um'))
##########################
QUtilities.plot_highlight_component('leInd', design)

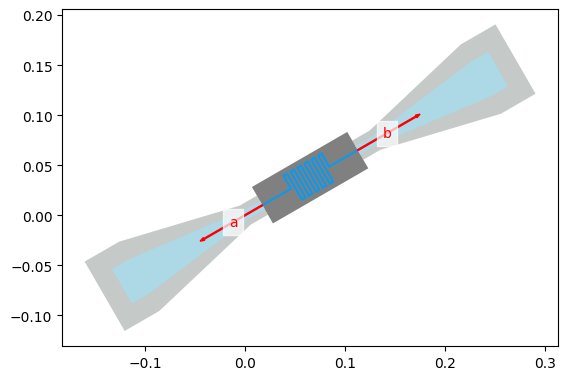

Resonators
Meander resonators
Using absolute coordinates
[16]:
from SQDMetal.Comps.Resonators import ResonatorMeander
design.delete_all_components()
fig, axs = plt.subplots(ncols=3)
#CONSTRAIN RADIUS, WIDTH##
ResonatorMeander(design, 'leRes', options=dict(pos_x='-250um', pos_y='-250um', orientation=30,
total_length='1mm', trace_width='10um', trace_gap='10um', fillet_padding='2um',
constr_radius='30um', constr_width_max='250um', constr_extend_length=0))
##########################
lePts = np.array([x for x in design.qgeometry.get_component('leRes')['path']['geometry'][0].coords])
lePts = QUtilities.calc_filleted_path(lePts, 0.03, design.template_options.PRECISION, 100)
print(f'Expected Length: 1mm, Actual Length: {np.linalg.norm(lePts[1:] - lePts[0:-1], axis=1).sum()}mm')
QUtilities.plot_highlight_component('leRes', design, ax=axs[0], resolution=8)
design.delete_all_components()
#CONSTRAIN RADIUS, LENGTH#
ResonatorMeander(design, 'leRes', options=dict(pos_x='-250um', pos_y='-250um', orientation=30,
total_length='1mm', trace_width='10um', trace_gap='10um', fillet_padding='2um',
constr_radius='30um', constr_width_max=0, constr_extend_length='250um'))
##########################
lePts = np.array([x for x in design.qgeometry.get_component('leRes')['path']['geometry'][0].coords])
lePts = QUtilities.calc_filleted_path(lePts, 0.03, design.template_options.PRECISION, 100)
print(f'Expected Length: 1mm, Actual Length: {np.linalg.norm(lePts[1:] - lePts[0:-1], axis=1).sum()}mm')
QUtilities.plot_highlight_component('leRes', design, ax=axs[1], resolution=8)
design.delete_all_components()
#CONSTRAIN WIDTH, LENGTH###
ResonatorMeander(design, 'leRes', options=dict(pos_x='-250um', pos_y='-250um', orientation=30,
total_length='1mm', trace_width='10um', trace_gap='10um', fillet_padding='2um',
constr_radius=0, constr_width_max='400um', constr_extend_length='500um'))
############################
lePts = np.array([x for x in design.qgeometry.get_component('leRes')['path']['geometry'][0].coords])
fillet_rad = design.qgeometry.get_component('leRes')['path']['fillet'][0]
lePts = QUtilities.calc_filleted_path(lePts, fillet_rad, design.template_options.PRECISION, 100)
print(f'Expected Length: 1mm, Actual Length: {np.linalg.norm(lePts[1:] - lePts[0:-1], axis=1).sum()}mm')
QUtilities.plot_highlight_component('leRes', design, ax=axs[2], resolution=8)
Expected Length: 1mm, Actual Length: 0.9999950580975743mm
Expected Length: 1mm, Actual Length: 0.9999960457910892mm
Expected Length: 1mm, Actual Length: 0.9999918916950894mm

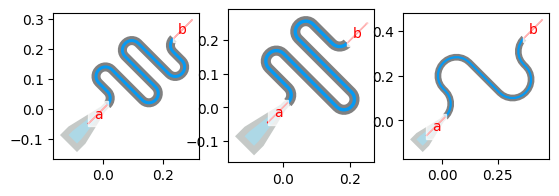

Using relative coordinates
[17]:
from SQDMetal.Comps.Resonators import ResonatorMeanderPin
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='45', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))

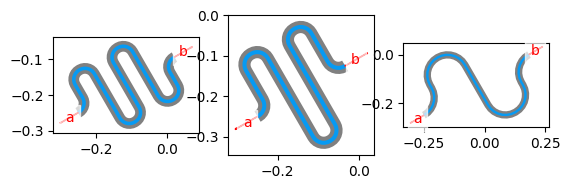

fig, axs = plt.subplots(ncols=3)
#CONSTRAIN RADIUS, WIDTH##
ResonatorMeanderPin(design, 'leRes', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'LP1',pin='tie')),
total_length='1mm', trace_width='10um', trace_gap='10um', fillet_padding='2um',
constr_radius='30um', constr_width_max='250um', constr_extend_length=0))
##########################
lePts = np.array([x for x in design.qgeometry.get_component('leRes')['path']['geometry'][0].coords])
lePts = QUtilities.calc_filleted_path(lePts, 0.03, design.template_options.PRECISION, 100)
print(f'Expected Length: 1mm, Actual Length: {np.linalg.norm(lePts[1:] - lePts[0:-1], axis=1).sum()}mm')
QUtilities.plot_highlight_component('leRes', design, ax=axs[0], resolution=8)
#CONSTRAIN RADIUS, LENGTH#
ResonatorMeanderPin(design, 'leRes', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'LP1',pin='tie')),
total_length='1mm', trace_width='10um', trace_gap='10um', fillet_padding='2um',
constr_radius='30um', constr_width_max=0, constr_extend_length='250um'))
##########################
lePts = np.array([x for x in design.qgeometry.get_component('leRes')['path']['geometry'][0].coords])
lePts = QUtilities.calc_filleted_path(lePts, 0.03, design.template_options.PRECISION, 100)
print(f'Expected Length: 1mm, Actual Length: {np.linalg.norm(lePts[1:] - lePts[0:-1], axis=1).sum()}mm')
QUtilities.plot_highlight_component('leRes', design, ax=axs[1], resolution=8)
#CONSTRAIN WIDTH, LENGTH###
ResonatorMeanderPin(design, 'leRes', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'LP1',pin='tie')),
total_length='1mm', trace_width='10um', trace_gap='10um', fillet_padding='2um',
constr_radius=0, constr_width_max='400um', constr_extend_length='500um'))
############################
lePts = np.array([x for x in design.qgeometry.get_component('leRes')['path']['geometry'][0].coords])
fillet_rad = design.qgeometry.get_component('leRes')['path']['fillet'][0]
lePts = QUtilities.calc_filleted_path(lePts, fillet_rad, design.template_options.PRECISION, 100)
print(f'Expected Length: 1mm, Actual Length: {np.linalg.norm(lePts[1:] - lePts[0:-1], axis=1).sum()}mm')
QUtilities.plot_highlight_component('leRes', design, ax=axs[2], resolution=8)
Expected Length: 1mm, Actual Length: 0.9999950575725147mm
Expected Length: 1mm, Actual Length: 0.999996045423972mm
Expected Length: 1mm, Actual Length: 0.9999918934263768mm

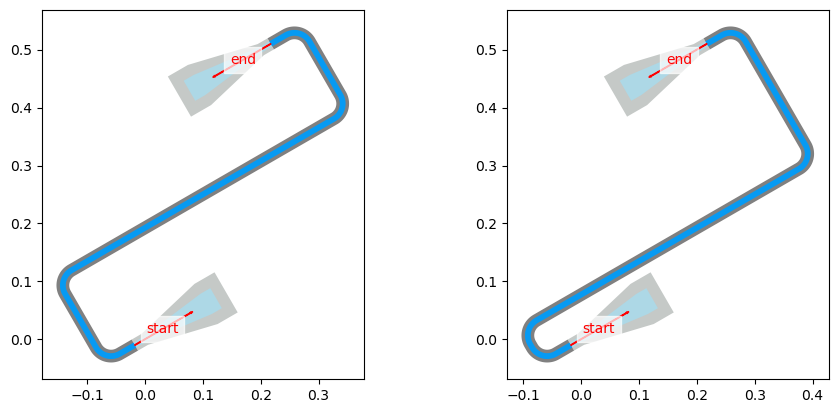

Using pins (can either constrain radius or width)
[18]:
from SQDMetal.Comps.Resonators import ResonatorMeanderPinPin
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='30', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
LaunchpadWirebond(design, 'LP2', options = dict(pos_x=f'{0.866*500}um', pos_y='250um', orientation='-150', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))

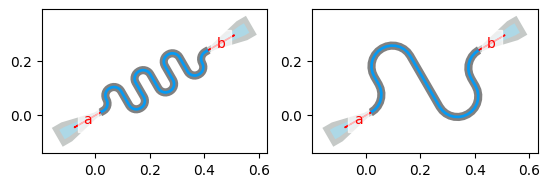

fig, axs = plt.subplots(ncols=2)
#CONSTRAIN RADIUS#########
ResonatorMeanderPinPin(design, 'leRes', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'LP1',pin='tie'), end_pin=Dict(component=f'LP2',pin='tie')),
total_length='1mm', trace_width='10um', trace_gap='10um', fillet_padding='2um',
constr_radius='30um', constr_width_max=0))
##########################
lePts = np.array([x for x in design.qgeometry.get_component('leRes')['path']['geometry'][0].coords])
lePts = QUtilities.calc_filleted_path(lePts, 0.03, design.template_options.PRECISION, 100)
print(f'Expected Length: 1mm, Actual Length: {np.linalg.norm(lePts[1:] - lePts[0:-1], axis=1).sum()}mm')
QUtilities.plot_highlight_component('leRes', design, ax=axs[0], resolution=8)
#CONSTRAIN WIDTH############
ResonatorMeanderPinPin(design, 'leRes', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'LP1',pin='tie'), end_pin=Dict(component=f'LP2',pin='tie')),
total_length='1mm', trace_width='10um', trace_gap='10um', fillet_padding='2um',
constr_radius=0, constr_width_max='400um'))
############################
lePts = np.array([x for x in design.qgeometry.get_component('leRes')['path']['geometry'][0].coords])
fillet_rad = design.qgeometry.get_component('leRes')['path']['fillet'][0]
lePts = QUtilities.calc_filleted_path(lePts, fillet_rad, design.template_options.PRECISION, 100)
print(f'Expected Length: 1mm, Actual Length: {np.linalg.norm(lePts[1:] - lePts[0:-1], axis=1).sum()}mm')
QUtilities.plot_highlight_component('leRes', design, ax=axs[1], resolution=8)
Expected Length: 1mm, Actual Length: 0.9999930787538981mm
Expected Length: 1mm, Actual Length: 0.9999925525931893mm
Markers
Dicing cross
Simple cross
[15]:
from SQDMetal.Comps.Markers import MarkerDicingCross
design.delete_all_components()
############################
MarkerDicingCross(design, 'mkr', options=Dict(pos_x='400um', pos_y='100um',
cross_size='400um', bar_width='40um', cross_gap='50um'))
############################
MarkerDicingCross(design, 'mkr2', options=Dict(pos_x='-400um', pos_y='100um',
cross_size='400um', bar_width='40um', cross_gap='50um'))
QUtilities.plot_highlight_component('mkr', design)
Square marker
Simple square
[13]:
from SQDMetal.Comps.Markers import MarkerSquare
design.delete_all_components()
############################
MarkerSquare(design, 'mkr', options=Dict(pos_x='100um', pos_y='100um',
square_width='20um', square_height='20um'))
############################
MarkerSquare(design, 'mkr2', options=Dict(pos_x='-100um', pos_y='100um',
square_width='20um', square_height='20um',
is_ground_cutout=True))
QUtilities.plot_highlight_component('mkr', design)
Quadruple square marker
A quadruple square
[14]:
from SQDMetal.Comps.Markers import MarkerSquare4
design.delete_all_components()
############################
MarkerSquare4(design, 'mkr', options=Dict(pos_x='400um', pos_y='100um',
square_spacing_x='320um', square_spacing_y='320um',
square_width='20um', square_height='20um'))
############################
MarkerSquare4(design, 'mkr2', options=Dict(pos_x='-400um', pos_y='100um',
square_spacing_x='320um', square_spacing_y='320um',
square_width='20um', square_height='20um',
is_ground_cutout=True))
QUtilities.plot_highlight_component('mkr', design)
Bandages

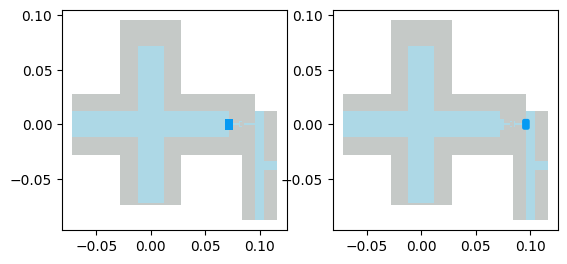

Rectangular patches
Basic rectangular patch on a pin
[5]:
from SQDMetal.Comps.Bandages import BandageRectPin
from SQDMetal.Comps.Junctions import JunctionDolanPinStretch
from SQDMetal.Comps.Xmon import Xmon
from SQDMetal.Comps.FluxLines import FluxLineTPin
design.delete_all_components()
Xmon(design, 'leXmon', options=Dict(pos_x=0, pos_y=0,
vBar_width='24um', hBar_width='24um', vBar_gap='16um', hBar_gap='16um',
cross_width='144um', cross_height='144um',
gap_up='24um', gap_left='0um', gap_right='24um'))
FluxLineTPin(design, 'flux_line_T', options=Dict(ref_comp='leXmon', ref_pin='right',
width=f'100um',
trace_width=f'8um',
trace_gap=f'12um',pin_dist='24um'))
JunctionDolanPinStretch(design, 'junction', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'flux_line_T',pin='t')),
dist_extend='25um',
finger_width='0.4um', t_pad_size='0.385um',
squid_width='5.4um', prong_width='0.9um'))
fig, axs = plt.subplots(ncols=2)
############################
BandageRectPin(design, 'bandaid', options=Dict(target_comp='leXmon',target_pin='right',
width='7um', height='10um'))
############################
QUtilities.plot_highlight_component('bandaid', design, ax=axs[0])
#CURVE IT ON EDGES##########
BandageRectPin(design, 'bandaid2', options=Dict(target_comp='flux_line_T',target_pin='t',
fillet_radius='2um', width='7um', height='10um'))
############################
QUtilities.plot_highlight_component('bandaid2', design, ax=axs[1])

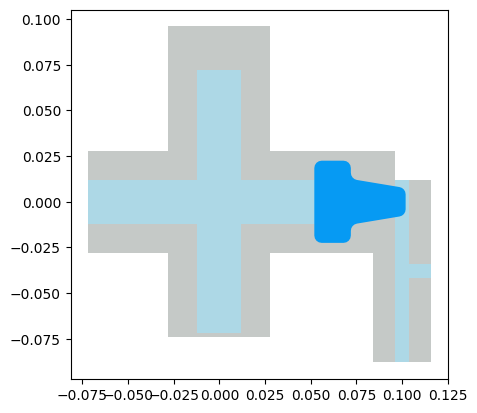

Tapered patches
Basic tapered patch on a pin (note it’s in the centre)
[2]:
from SQDMetal.Comps.Bandages import BandageTaperedPin
from SQDMetal.Comps.Junctions import JunctionDolanPinStretch
from SQDMetal.Comps.Xmon import Xmon
from SQDMetal.Comps.FluxLines import FluxLineTPin
design.delete_all_components()
Xmon(design, 'leXmon', options=Dict(pos_x=0, pos_y=0,
vBar_width='24um', hBar_width='24um', vBar_gap='16um', hBar_gap='16um',
cross_width='144um', cross_height='144um',
gap_up='24um', gap_left='0um', gap_right='24um'))
FluxLineTPin(design, 'flux_line_T', options=Dict(ref_comp='leXmon', ref_pin='right',
width=f'100um',
trace_width=f'8um',
trace_gap=f'12um',pin_dist='24um'))
JunctionDolanPinStretch(design, 'junction', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'flux_line_T',pin='t')),
dist_extend='25um',
finger_width='0.4um', t_pad_size='0.385um',
squid_width='5.4um', prong_width='0.9um'))
############################
BandageTaperedPin(design, 'bandaid', options=Dict(target_comp='leXmon',target_pin='right',
taper_width_top='15um',
taper_width_base='25um',
base_width='45um',
fillet_radius='4um',
orientation=0,
ignore_slope_check=True))
############################
QUtilities.plot_highlight_component('bandaid', design)

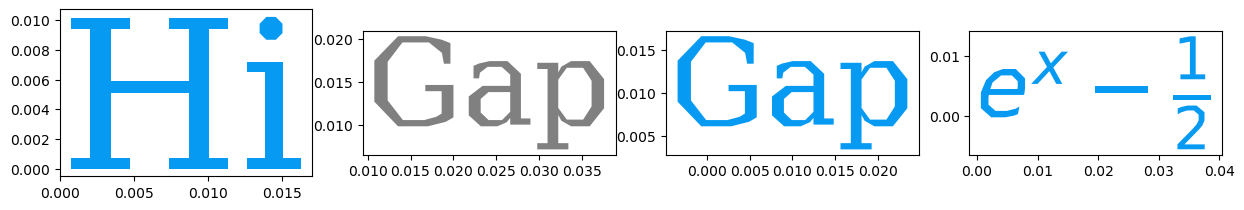

Text Labels
[12]:
from SQDMetal.Comps.Labels import LabelText
design.delete_all_components()
############################
LabelText(design, 'leText', options=Dict(pos_x=0, pos_y=0,
text='Hi', font_size='10um', font='serif'))
############################
fig, axs = plt.subplots(ncols=4); fig.set_figwidth(15)
QUtilities.plot_highlight_component('leText', design, ax=axs[0])
design.delete_all_components()
#CUT INTO GROUND PLANE######
LabelText(design, 'leText', options=Dict(pos_x='10um', pos_y='10um',
text="Gap", font_size='10um', font='serif', is_gap=True))
############################
QUtilities.plot_highlight_component('leText', design, ax=axs[1])
design.delete_all_components()
#CENTRE TEXT ON POSITION####
LabelText(design, 'leText', options=Dict(pos_x='10um', pos_y='10um',
text="Gap", font_size='10um', font='serif', centre_text=True))
############################
QUtilities.plot_highlight_component('leText', design, ax=axs[2])
design.delete_all_components()
#TYPESET LATEX##############
LabelText(design, 'leText', options=Dict(pos_x=0, pos_y=0,
text=r"$e^x-\frac{1}{2}$", font_size='10um', is_latex=True))
############################
QUtilities.plot_highlight_component('leText', design, ax=axs[3])

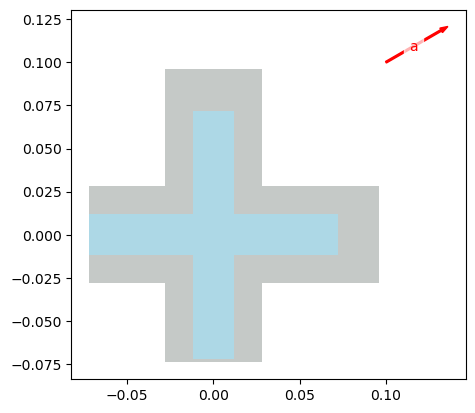

Joints
Basic isolated pin
Basic joint
[63]:
from SQDMetal.Comps.Joints import Joint
from SQDMetal.Comps.Xmon import Xmon
design.delete_all_components()
Xmon(design, 'leXmon', options=Dict(pos_x=0, pos_y=0,
vBar_width='24um', hBar_width='24um', vBar_gap='16um', hBar_gap='16um',
cross_width='144um', cross_height='144um',
gap_up='24um', gap_left='0um', gap_right='24um'))
############################
Joint(design, 'leJoint', options=Dict(pos_x='100um', pos_y='100um', orientation=30))
############################
QUtilities.plot_highlight_component('leJoint', design)

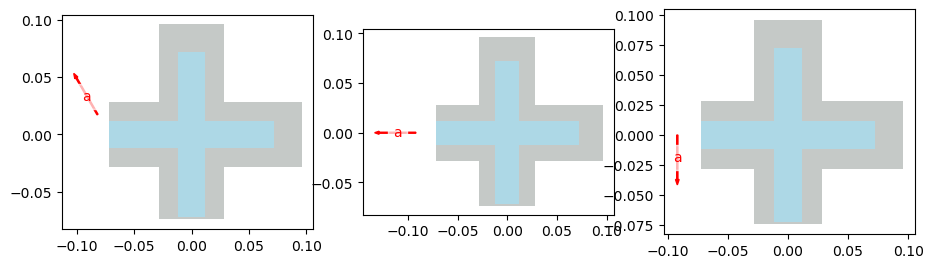

Extending pin off another pin
Extending joint off another pin (can manually specify direction vector or use the source pin’s direction)
[70]:
from SQDMetal.Comps.Joints import Joint
from SQDMetal.Comps.Xmon import Xmon
design.delete_all_components()
Xmon(design, 'leXmon', options=Dict(pos_x=0, pos_y=0,
vBar_width='24um', hBar_width='24um', vBar_gap='16um', hBar_gap='16um',
cross_width='144um', cross_height='144um',
gap_up='24um', gap_left='0um', gap_right='24um'))
fig, axs = plt.subplots(ncols=3); fig.set_figwidth(11)
#MANUAL DIRECTION FROM PIN##
JointExtend(design, 'leJoint', options=Dict(jointObj='leXmon', jointPin='left',
dist_extend='20um', orientation=120,
pin_width='10um', extend_off_pin_dir=False))
############################
QUtilities.plot_highlight_component('leJoint', design, ax=axs[0])
#USE PIN'S DIRECTION########
JointExtend(design, 'leJoint', options=Dict(jointObj='leXmon', jointPin='left',
dist_extend='20um', orientation=150,
pin_width='10um', extend_off_pin_dir=True))
############################
QUtilities.plot_highlight_component('leJoint', design, ax=axs[1])
#SPECIFY NEW PIN DIRECTION##
JointExtend(design, 'leJoint', options=Dict(jointObj='leXmon', jointPin='left',
dist_extend='20um', orientation=150,
pin_width='10um', extend_off_pin_dir=True,
pin_orientation=270))
############################
QUtilities.plot_highlight_component('leJoint', design, ax=axs[2])

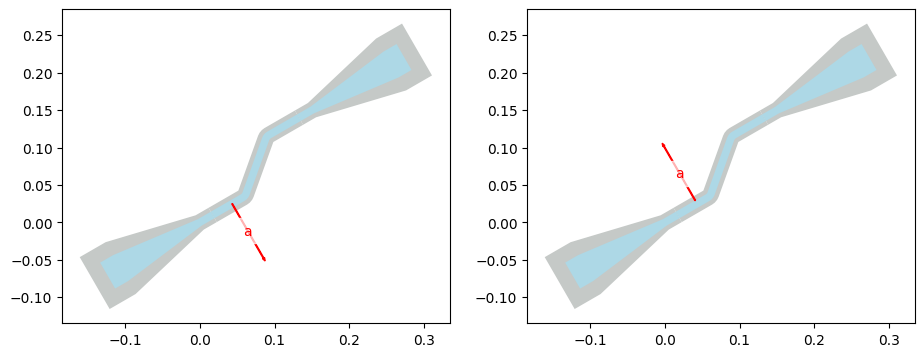

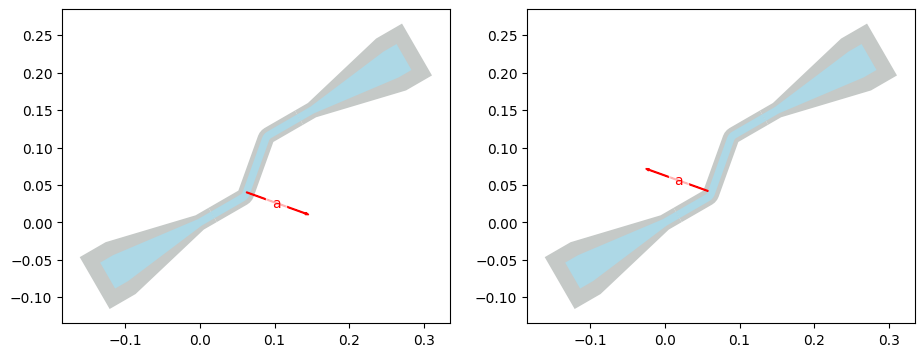

Pin on side of wire/routing object
A pin to the side of a wire when given as a fraction of wire’s distance
[79]:
from SQDMetal.Comps.Joints import RouteJoint
from SQDMetal.Comps.Capacitors import CapacitorInterdigitalPinPin
from SQDMetal.Comps.Wires import WirePins
from SQDMetal.Comps.Joints import JointExtend
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='30', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
LaunchpadWirebond(design, 'LP2', options = dict(pos_x='150um', pos_y='150um', orientation='-150', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
JointExtend(design, 'jnt1', options=Dict(jointObj='LP1', jointPin='tie', dist_extend='50um', extend_off_pin_dir=True))
JointExtend(design, 'jnt2', options=Dict(jointObj='LP2', jointPin='tie', dist_extend='50um', extend_off_pin_dir=True))
WirePins(design, 'lead', options=Dict(pathObjPins=[('LP1', 'tie'), 'jnt1', 'jnt2', ('LP2', 'tie')], fillet='10um'))
fig, axs = plt.subplots(ncols=2); fig.set_figwidth(11)
#BASIC POSITIONING (RHS)####
RouteJoint(design, 'jntRoute', options=Dict(pathObj='lead', frac_line=0.3, is_right_hand=True))
############################
QUtilities.plot_highlight_component('jntRoute', design, ax=axs[0])
#PIN ON WIRE-EDGE (LHS)#####
RouteJoint(design, 'jntRoute', options=Dict(pathObj='lead', frac_line=0.3, is_right_hand=False, attach_on_side=True))
############################
QUtilities.plot_highlight_component('jntRoute', design, ax=axs[1])

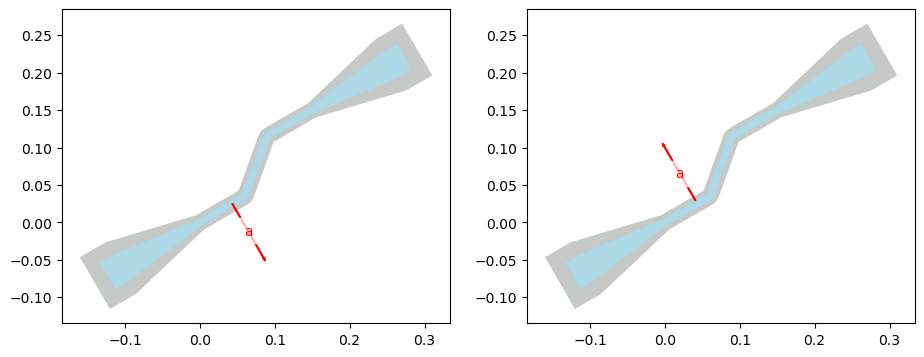

A pin to the side of a wire when given as an absolute distance along wire
[99]:
from SQDMetal.Comps.Joints import RouteJoint
from SQDMetal.Comps.Wires import WirePins
from SQDMetal.Comps.Joints import JointExtend
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='30', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
LaunchpadWirebond(design, 'LP2', options = dict(pos_x='150um', pos_y='150um', orientation='-150', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
JointExtend(design, 'jnt1', options=Dict(jointObj='LP1', jointPin='tie', dist_extend='50um', extend_off_pin_dir=True))
JointExtend(design, 'jnt2', options=Dict(jointObj='LP2', jointPin='tie', dist_extend='50um', extend_off_pin_dir=True))
WirePins(design, 'lead', options=Dict(pathObjPins=[('LP1', 'tie'), 'jnt1', 'jnt2', ('LP2', 'tie')], fillet='10um'))
fig, axs = plt.subplots(ncols=2); fig.set_figwidth(11)
#BASIC POSITIONING (RHS)####
RouteJoint(design, 'jntRoute', options=Dict(pathObj='lead', dist_line='30um', frac_line=-1, is_right_hand=True))
############################
QUtilities.plot_highlight_component('jntRoute', design, ax=axs[0])
#PIN ON WIRE-EDGE (LHS)#####
RouteJoint(design, 'jntRoute', options=Dict(pathObj='lead', dist_line='30um', frac_line=-1, is_right_hand=False, attach_on_side=True))
############################
QUtilities.plot_highlight_component('jntRoute', design, ax=axs[1])
Wires
Wire extending off a pin
Basic wire stretching off a pin
[81]:
from SQDMetal.Comps.Wires import WirePinStretch
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='30', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
#BASIC POSITIONING (RHS)####
WirePinStretch(design, 'leWire', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'LP1',pin='tie')),
dist_extend='50um'))
############################
QUtilities.plot_highlight_component('leWire', design)

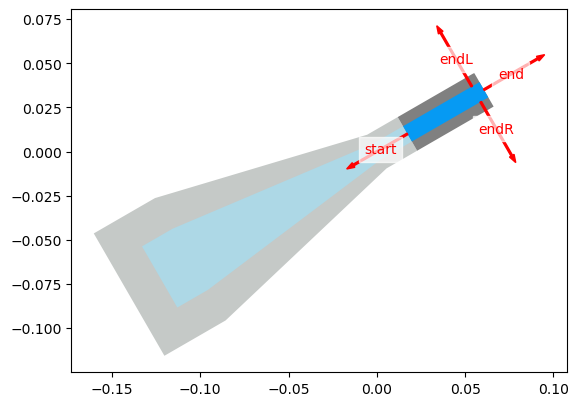

Gaps can be added to the start and end for grounding-cutting purposes
[86]:
from SQDMetal.Comps.Wires import WirePinStretch
from SQDMetal.Comps.Joints import Joint
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
Joint(design, 'jnt', options = dict(pos_x=0, pos_y=0, orientation=30))
fig, axs = plt.subplots(ncols=2); fig.set_figwidth(11)
#GAP GIVEN BY TRACE GAP#####
WirePinStretch(design, 'leWire', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'jnt',pin='a')),
dist_extend='50um', start_gap=0, end_gap=0))
############################
QUtilities.plot_highlight_component('leWire', design, ax=axs[0])
#MANUALLY SPECIFY GAP#######
WirePinStretch(design, 'leWire', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'jnt',pin='a')),
dist_extend='50um', start_gap='10um', end_gap='20um'))
############################
QUtilities.plot_highlight_component('leWire', design, ax=axs[1])

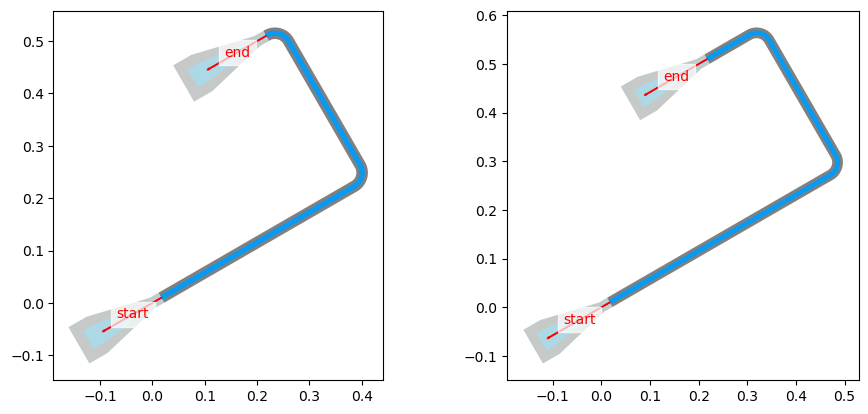

Manual wire routing through pins
When facing each other in anti-parallel manner
[101]:
from SQDMetal.Comps.Wires import WirePins
from SQDMetal.Comps.Joints import Joint, JointExtend
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='30', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
Joint(design, 'LP2', options = dict(pos_x='150um', pos_y='150um', orientation='30'))
JointExtend(design, 'jnt1', options=Dict(jointObj='LP1', jointPin='tie', dist_extend='50um', extend_off_pin_dir=True))
JointExtend(design, 'jnt2', options=Dict(jointObj='LP2', jointPin='a', dist_extend='-50um', extend_off_pin_dir=True))
fig, axs = plt.subplots(ncols=2); fig.set_figwidth(11)
#BASIC WIRING###############
WirePins(design, 'lead', options=Dict(pathObjPins=[('LP1', 'tie'), 'jnt1', 'jnt2', 'LP2'],
trace_width='10um', trace_gap='10um', fillet='10um'))
############################
QUtilities.plot_highlight_component('lead', design, ax=axs[0])
#GROUND CUT ON END##########
WirePins(design, 'lead', options=Dict(pathObjPins=[('LP1', 'tie'), 'jnt1', 'jnt2', 'LP2'],
trace_width='10um', trace_gap='10um', fillet='40um', end_gap='20um'))
############################
QUtilities.plot_highlight_component('lead', design, ax=axs[1])

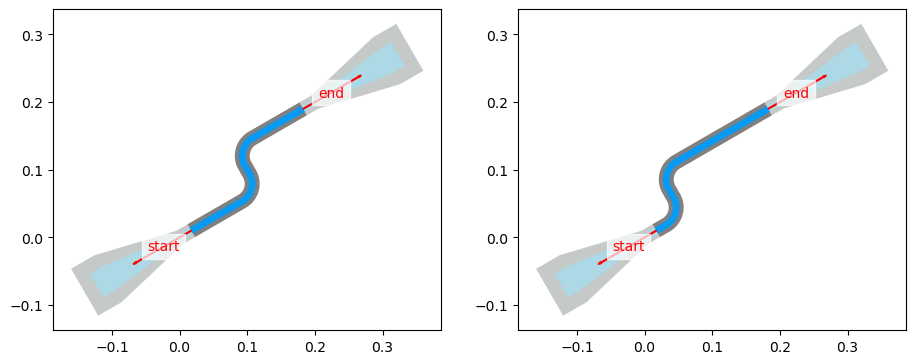

Parallel connecting S-elbow wire
Antiparallel connecting elbow wire
[106]:
from SQDMetal.Comps.Wires import WireElbowParallelPinPin
from SQDMetal.Comps.Joints import JointExtend
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='30', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
LaunchpadWirebond(design, 'LP2', options = dict(pos_x='200um', pos_y='200um', orientation='-150', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
fig, axs = plt.subplots(ncols=2); fig.set_figwidth(11)
#NORMAL S-BEND##############
WireElbowParallelPinPin(design, 'wireS', options=Dict(pin_inputs=Dict(start_pin=Dict(component='LP1',pin='tie'), end_pin=Dict(component='LP2',pin='tie')),
fillet='30um'))
############################
QUtilities.plot_highlight_component('wireS', design, ax=axs[0], resolution=32)
#FRACTIONAL POSITION OF S###
WireElbowParallelPinPin(design, 'wireS', options=Dict(pin_inputs=Dict(start_pin=Dict(component='LP1',pin='tie'), end_pin=Dict(component='LP2',pin='tie')),
fillet='30um', frac_pos_elbow=0.2))
############################
QUtilities.plot_highlight_component('wireS', design, ax=axs[1], resolution=32)
Antiparallel connecting elbow
[109]:
from SQDMetal.Comps.Wires import WireElbowParallelPinPin
from SQDMetal.Comps.Joints import JointExtend
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='-150', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
LaunchpadWirebond(design, 'LP2', options = dict(pos_x='200um', pos_y='500um', orientation='30', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
fig, axs = plt.subplots(ncols=2); fig.set_figwidth(11)
#NORMAL S-BEND##############
WireElbowParallelPinPin(design, 'wireS', options=Dict(pin_inputs=Dict(start_pin=Dict(component='LP1',pin='tie'), end_pin=Dict(component='LP2',pin='tie')),
fillet='30um', pin_pad='30um'))
############################
QUtilities.plot_highlight_component('wireS', design, ax=axs[0], resolution=32)
#FRACTIONAL POSITION OF S###
WireElbowParallelPinPin(design, 'wireS', options=Dict(pin_inputs=Dict(start_pin=Dict(component='LP1',pin='tie'), end_pin=Dict(component='LP2',pin='tie')),
fillet='30um', pin_pad='30um', frac_pos_elbow=0.2))
############################
QUtilities.plot_highlight_component('wireS', design, ax=axs[1], resolution=32)
Parallel connecting elbow
[111]:
from SQDMetal.Comps.Wires import WireElbowParallelPinPin
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='30', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
LaunchpadWirebond(design, 'LP2', options = dict(pos_x='200um', pos_y='500um', orientation='30', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
fig, axs = plt.subplots(ncols=2); fig.set_figwidth(11)
#NORMAL S-BEND##############
WireElbowParallelPinPin(design, 'wireS', options=Dict(pin_inputs=Dict(start_pin=Dict(component='LP1',pin='tie'), end_pin=Dict(component='LP2',pin='tie')),
fillet='30um'))
############################
QUtilities.plot_highlight_component('wireS', design, ax=axs[0], resolution=32)
#MODIFY WIRE PADDING########
WireElbowParallelPinPin(design, 'wireS', options=Dict(pin_inputs=Dict(start_pin=Dict(component='LP1',pin='tie'), end_pin=Dict(component='LP2',pin='tie')),
fillet='30um', pin_pad='100um'))
############################
QUtilities.plot_highlight_component('wireS', design, ax=axs[1], resolution=32)

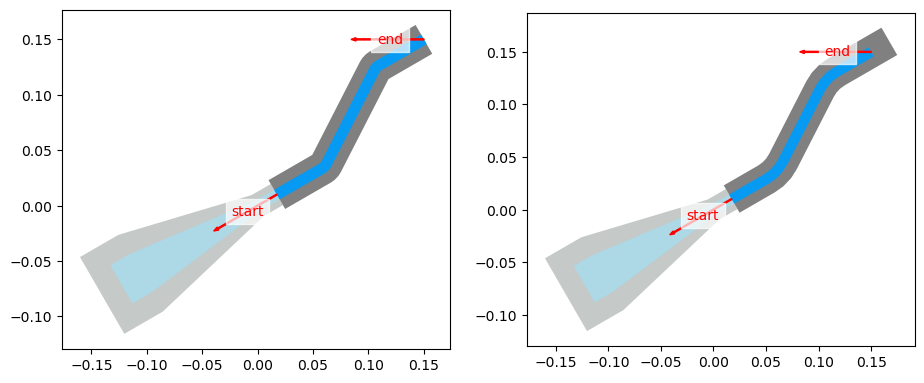

Single elbow connector
Basic connecting elbow wire
[120]:
from SQDMetal.Comps.Wires import WireElbowSingle
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='30', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
LaunchpadWirebond(design, 'LP2', options = dict(pos_x='200um', pos_y='350um', orientation='-90', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
#NORMAL S-BEND##############
WireElbowSingle(design, 'wireS', options=Dict(pin_inputs=Dict(start_pin=Dict(component='LP1',pin='tie'), end_pin=Dict(component='LP2',pin='tie')),
fillet='50um'))
############################
QUtilities.plot_highlight_component('wireS', design, resolution=32)

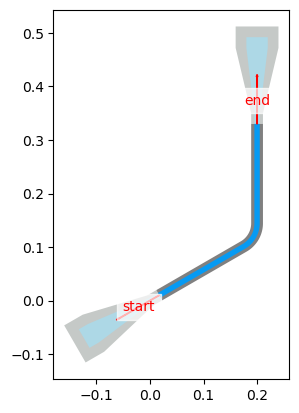

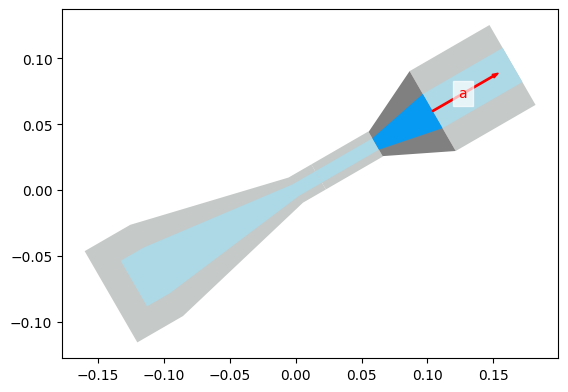

Wire taper (to change wire size)
Basic taper
[133]:
from SQDMetal.Comps.Wires import WireTaperPinStretch
from SQDMetal.Comps.Wires import WirePinStretch
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='30', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
WirePinStretch(design, 'leWire', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'LP1',pin='tie')),
dist_extend='50um'))
#BASIC POSITIONING (RHS)####
WireTaperPinStretch(design, 'taper', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'leWire',pin='end')),
dist_extend='50um', trace_width='30um', trace_gap='20um'))
############################
WirePinStretch(design, 'leWire2', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'taper',pin='a')),
dist_extend='70um', trace_width='30um', trace_gap='20um'))
QUtilities.plot_highlight_component('taper', design)

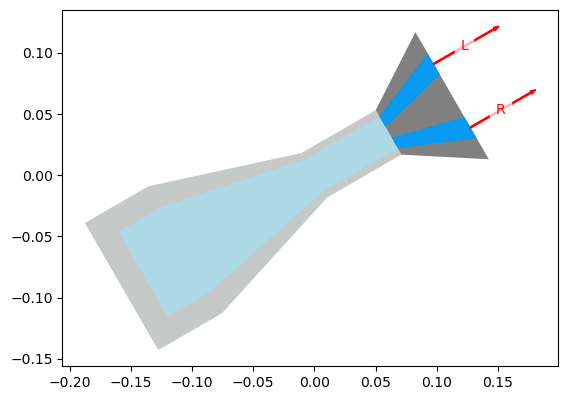

Wire dual-probe taper
Dual probe pins
[150]:
from SQDMetal.Comps.Wires import WireTaperProbePinStretch
from SQDMetal.Comps.Wires import WirePinStretch
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='30', lead_length='20um', pad_height='40um',
pad_width='80um', pad_gap='20um', trace_width='30um'))
WirePinStretch(design, 'leWire', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'LP1',pin='tie')),
dist_extend='50um', trace_width='30um'))
#BASIC POSITIONING (RHS)####
WireTaperProbePinStretch(design, 'probe', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'leWire',pin='end')),
dist_extend='60um', probe_gap1='10um', probe_gap2='40um',
trace_width='20um', trace_gap='20um'))
############################
QUtilities.plot_highlight_component('probe', design)

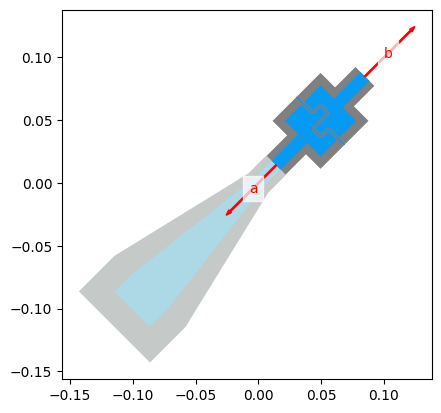

Xmon
Basic Xmon
Basic Xmon
[119]:
from SQDMetal.Comps.Xmon import Xmon
from SQDMetal.Comps.Capacitors import CapacitorGapPinStretch
design.delete_all_components()
############################
Xmon(design, 'leXmon', options=Dict(pos_x=0, pos_y=0,
vBar_width='24um', hBar_width='24um', vBar_gap='16um', hBar_gap='16um',
cross_width='144um', cross_height='144um',
gap_up='24um', gap_left='0um', gap_right='24um'))
############################
CapacitorGapPinStretch(design, f'capProng', options=Dict(cpw_width=f'20um',
pin_inputs=Dict(start_pin=Dict(component=f'leXmon',pin='left')),
dist_extend='120um',
cap_width=f'50um',
cap_gap='3um',
gnd_width='1um',
len_diag='0um', len_flat=f'50um',
side_gap=f'10um', init_pad='10um'
))
QUtilities.plot_highlight_component('leXmon', design)

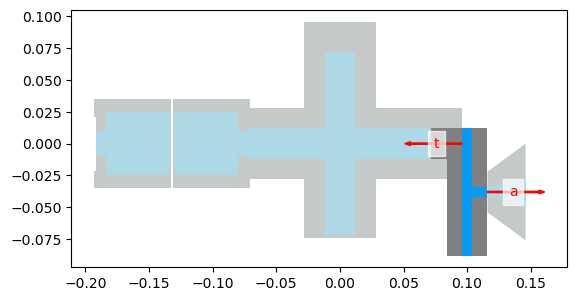

Flux lines
T-junction flux line
A T-junction flux line to equally balance the currents to ground on the CPW
[28]:
from SQDMetal.Comps.FluxLines import FluxLineTPin
from SQDMetal.Comps.Xmon import Xmon
from SQDMetal.Comps.Capacitors import CapacitorGapPinStretch
from SQDMetal.Comps.Wires import WireTaperPinStretch
design.delete_all_components()
Xmon(design, 'leXmon', options=Dict(pos_x=0, pos_y=0,
vBar_width='24um', hBar_width='24um', vBar_gap='16um', hBar_gap='16um',
cross_width='144um', cross_height='144um',
gap_up='24um', gap_left='0um', gap_right='24um'))
############################
FluxLineTPin(design, 'flux_line_T', options=Dict(ref_comp='leXmon', ref_pin='right',
width=f'100um',
trace_width=f'8um',
trace_gap=f'12um',pin_dist='24um'))
############################
WireTaperPinStretch(design, 'flux_ln_taper', options=Dict(pin_inputs={'start_pin': {'component': 'flux_line_T', 'pin': 'a'}},
trace_width=f'20um', trace_gap=f'28um', taper_length='50um'))
CapacitorGapPinStretch(design, f'capProng', options=Dict(cpw_width=f'20um',
pin_inputs=Dict(start_pin=Dict(component=f'leXmon',pin='left')),
dist_extend='120um',
cap_width=f'50um',
cap_gap='3um',
gnd_width='1um',
len_diag='0um', len_flat=f'50um',
side_gap=f'10um', init_pad='10um'
))
QUtilities.plot_highlight_component('flux_line_T', design)
Josephson junctions

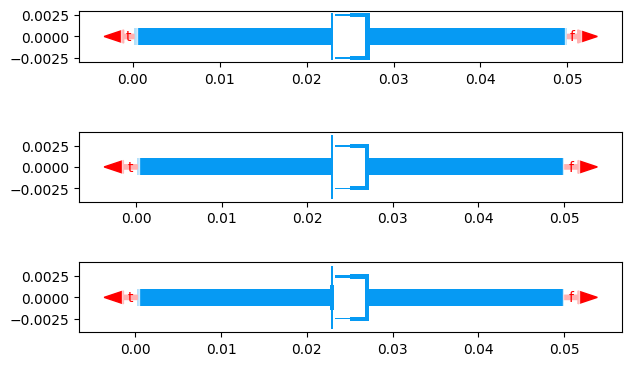

Dolan bridge
Using absolute coordinates
[21]:
from SQDMetal.Comps.Junctions import JunctionDolan
fig, axs = plt.subplots(nrows=3); fig.set_figwidth(7)
design.delete_all_components()
############################
JunctionDolan(design, 'junction', options=Dict(pos_x=0, pos_y=0,
squid_width='5.4um', prong_width='0.9um'))
############################
QUtilities.plot_highlight_component('junction', design, arrow_width=0.0005, ax=axs[0])
design.delete_all_components()
#ADD EXTRA BUFFER FINGERS###
JunctionDolan(design, 'junction', options=Dict(pos_x=0, pos_y=0,
t_pad_extra='1um',
squid_width='5.4um', prong_width='0.9um'))
############################
QUtilities.plot_highlight_component('junction', design, arrow_width=0.0005, ax=axs[1])
design.delete_all_components()
#ADJUST SIDE FINGER WIDTH###
JunctionDolan(design, 'junction', options=Dict(pos_x=0, pos_y=0,
finger_width='0.4um',
t_pad_width='0.5um', t_pad_length='3um', t_finger_width='0.2um',
t_pad_extra='1um',
squid_width='5.4um', prong_width='0.9um'))
############################
QUtilities.plot_highlight_component('junction', design, arrow_width=0.0005, ax=axs[2])

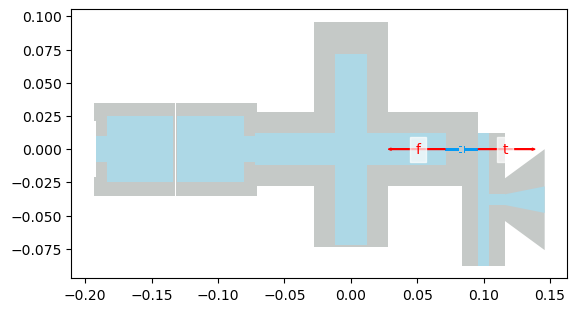

Using relative coordinates
[ ]:
from SQDMetal.Comps.Junctions import JunctionDolanPinStretch
design.delete_all_components()
from SQDMetal.Comps.Xmon import Xmon
from SQDMetal.Comps.Capacitors import CapacitorGapPinStretch
from SQDMetal.Comps.Wires import WireTaperPinStretch
from SQDMetal.Comps.FluxLines import FluxLineTPin
design.delete_all_components()
Xmon(design, 'leXmon', options=Dict(pos_x=0, pos_y=0,
vBar_width='24um', hBar_width='24um', vBar_gap='16um', hBar_gap='16um',
cross_width='144um', cross_height='144um',
gap_up='24um', gap_left='0um', gap_right='24um'))
FluxLineTPin(design, 'flux_line_T', options=Dict(ref_comp='leXmon', ref_pin='right',
width=f'100um',
trace_width=f'8um',
trace_gap=f'12um',pin_dist='24um'))
WireTaperPinStretch(design, 'flux_ln_taper', options=Dict(pin_inputs={'start_pin': {'component': 'flux_line_T', 'pin': 'a'}},
trace_width=f'20um', trace_gap=f'28um', taper_length='50um'))
CapacitorGapPinStretch(design, f'capProng', options=Dict(cpw_width=f'20um',
pin_inputs=Dict(start_pin=Dict(component=f'leXmon',pin='left')),
dist_extend='120um',
cap_width=f'50um',
cap_gap='3um',
gnd_width='1um',
len_diag='0um', len_flat=f'50um',
side_gap=f'10um', init_pad='10um'
))
############################
JunctionDolanPinStretch(design, 'junction', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'flux_line_T',pin='t')),
dist_extend='25um',
finger_width='0.4um', t_pad_size='0.385um',
squid_width='5.4um', prong_width='0.9um'))
############################
QUtilities.plot_highlight_component('junction', design, arrow_width=0.0005)

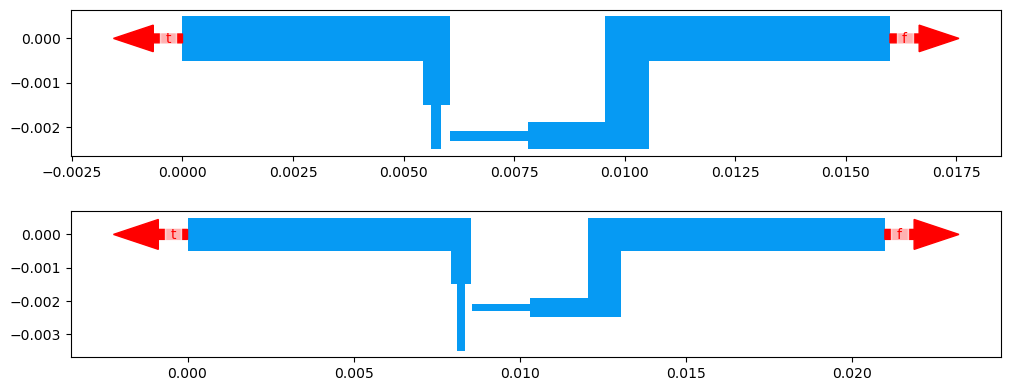

Asymmetric Dolan bridge
Using absolute coordinates
[7]:
from SQDMetal.Comps.Junctions import JunctionDolanAsymmetric
fig, axs = plt.subplots(nrows=3); fig.set_figwidth(7)
design.delete_all_components()
############################
JunctionDolanAsymmetric(design, 'junction', options=Dict(pos_x=0, pos_y=0,
squid_width='5.4um', prong_width='0.9um'))
############################
QUtilities.plot_highlight_component('junction', design, arrow_width=0.0005, ax=axs[0])
design.delete_all_components()
#ADD EXTRA BUFFER FINGERS###
JunctionDolanAsymmetric(design, 'junction', options=Dict(pos_x=0, pos_y=0,
t_pad_extra='1um',
squid_width='5.4um', prong_width='0.9um'))
############################
QUtilities.plot_highlight_component('junction', design, arrow_width=0.0005, ax=axs[1])
design.delete_all_components()
#ADJUST SIDE FINGER WIDTH###
JunctionDolanAsymmetric(design, 'junction', options=Dict(pos_x=0, pos_y=0,
finger_width_top='0.4um', finger_width_bottom='0.2um',
t_pad_width='0.5um', t_pad_length='3um', t_finger_width='0.2um',
t_pad_extra='1um',
squid_width='5.4um', prong_width='0.9um'))
############################
QUtilities.plot_highlight_component('junction', design, arrow_width=0.0005, ax=axs[2])

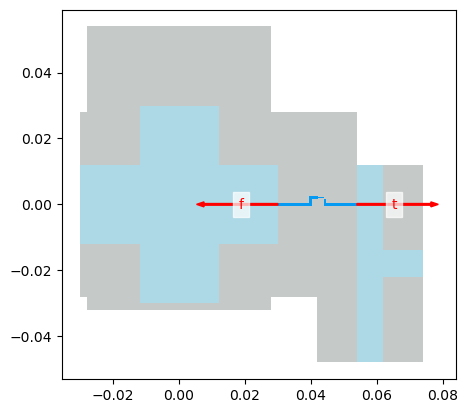

Using relative coordinates
[19]:
from SQDMetal.Comps.Junctions import JunctionDolanAsymmetricPinStretch
design.delete_all_components()
from SQDMetal.Comps.Xmon import Xmon
from SQDMetal.Comps.Wires import WireTaperPinStretch
from SQDMetal.Comps.FluxLines import FluxLineTPin
design.delete_all_components()
Xmon(design, 'leXmon', options=Dict(pos_x=0, pos_y=0,
vBar_width='24um', hBar_width='24um', vBar_gap='16um', hBar_gap='16um',
cross_width='60um', cross_height='60um',
gap_up='24um', gap_left='0um', gap_right='24um'))
FluxLineTPin(design, 'flux_line_T', options=Dict(ref_comp='leXmon', ref_pin='right',
width=f'60um',
trace_width=f'8um',
trace_gap=f'12um',pin_dist='24um'))
WireTaperPinStretch(design, 'flux_ln_taper', options=Dict(pin_inputs={'start_pin': {'component': 'flux_line_T', 'pin': 'a'}},
trace_width=f'20um', trace_gap=f'28um', taper_length='50um'))
############################
JunctionDolanAsymmetricPinStretch(design, 'junction', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'flux_line_T',pin='t')),
dist_extend='25um',
finger_width_top='0.4um', finger_width_bottom='0.2um',
t_pad_width='0.5um', t_pad_length='3um', t_finger_width='0.2um',
t_pad_extra='1um',
squid_width='5.4um', prong_width='0.9um'))
############################
QUtilities.plot_highlight_component('junction', design, arrow_width=0.0005)

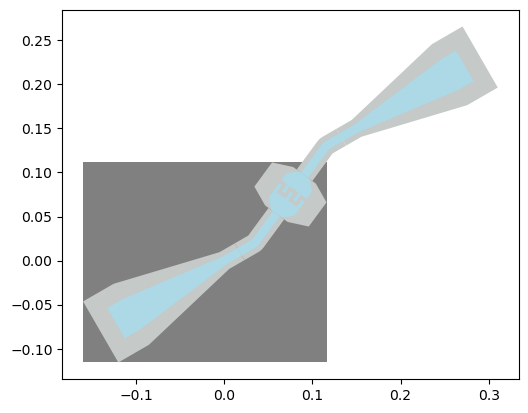

Bounds
Rectangular bound
Basic shielding
[5]:
from SQDMetal.Comps.Bounds import BoundRectangle
from SQDMetal.Comps.Capacitors import CapacitorInterdigitalPinPin
from SQDMetal.Comps.Wires import WirePins
from SQDMetal.Comps.Joints import JointExtend
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='30', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
LaunchpadWirebond(design, 'LP2', options = dict(pos_x='150um', pos_y='150um', orientation='-150', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
JointExtend(design, 'jnt1', options=Dict(jointObj='LP1', jointPin='tie', dist_extend='20um', extend_off_pin_dir=True))
JointExtend(design, 'jnt2', options=Dict(jointObj='LP2', jointPin='tie', dist_extend='20um', extend_off_pin_dir=True))
CapacitorInterdigitalPinPin(design, 'leCap', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'jnt1',pin='a'), end_pin=Dict(component=f'jnt2',pin='a')),
cpw_width='15um', len_flat='10um', fing_len='10um', fing_len_gap='4um', fing_wid='4um',
len_diag='10um', fing_wid_gap='4um', N_total=5, larger_first=True))
WirePins(design, 'lead1', options=Dict(pathObjPins=[('LP1', 'tie'), 'jnt1', ('leCap', 'a')], fillet='10um'))
WirePins(design, 'lead2', options=Dict(pathObjPins=[('LP2', 'tie'), 'jnt2', ('leCap', 'b')], fillet='10um'))
############################
BoundRectangle(design, 'bndRectangle', options=Dict(bnd_objects=['LP1', 'leCap'],
is_ground_cut=True))
############################
QUtilities.plot_highlight_component('bndRectangle', design, push_to_back=True)

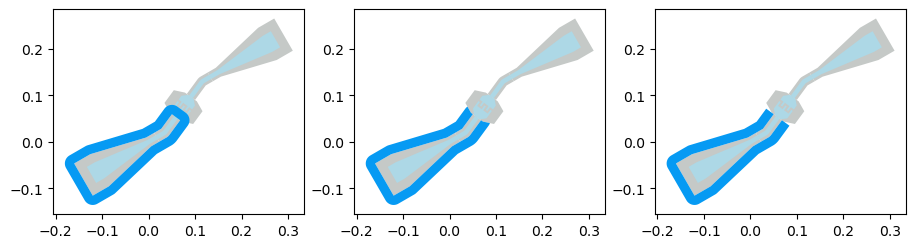

Ground shields
Basic shielding
[3]:
from SQDMetal.Comps.Bounds import BoundGroundShield
from SQDMetal.Comps.Capacitors import CapacitorInterdigitalPinPin
from SQDMetal.Comps.Wires import WirePins
from SQDMetal.Comps.Joints import JointExtend
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='30', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
LaunchpadWirebond(design, 'LP2', options = dict(pos_x='150um', pos_y='150um', orientation='-150', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
JointExtend(design, 'jnt1', options=Dict(jointObj='LP1', jointPin='tie', dist_extend='20um', extend_off_pin_dir=True))
JointExtend(design, 'jnt2', options=Dict(jointObj='LP2', jointPin='tie', dist_extend='20um', extend_off_pin_dir=True))
CapacitorInterdigitalPinPin(design, 'leCap', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'jnt1',pin='a'), end_pin=Dict(component=f'jnt2',pin='a')),
cpw_width='15um', len_flat='10um', fing_len='10um', fing_len_gap='4um', fing_wid='4um',
len_diag='10um', fing_wid_gap='4um', N_total=5, larger_first=True))
WirePins(design, 'lead1', options=Dict(pathObjPins=[('LP1', 'tie'), 'jnt1', ('leCap', 'a')], fillet='10um'))
WirePins(design, 'lead2', options=Dict(pathObjPins=[('LP2', 'tie'), 'jnt2', ('leCap', 'b')], fillet='10um'))

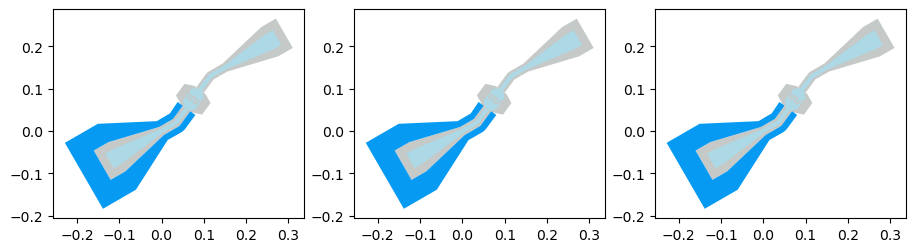

fig, axs = plt.subplots(ncols=3); fig.set_figwidth(11)
#BASIC ENVELOPE#############
BoundGroundShield(design, 'bndsGround', options=Dict(include_geoms=['lead1', 'LP1'],
gnd_width='20um'))
############################
QUtilities.plot_highlight_component('bndsGround', design, ax=axs[0])
#EXCLUDE GEOMETRY###########
BoundGroundShield(design, 'bndsGround', options=Dict(include_geoms=['lead1', 'LP1'], exclude_geoms = ['leCap'],
gnd_width='20um'))
############################
QUtilities.plot_highlight_component('bndsGround', design, ax=axs[1])
#EXCLUDE PIN REGION#########
BoundGroundShield(design, 'bndsGround', options=Dict(include_geoms=['lead1', 'LP1'], exclude_geoms = ['leCap'],
exclude_pins=[('lead1', 'end', '100um')], gnd_width='20um'))
############################
QUtilities.plot_highlight_component('bndsGround', design, ax=axs[2])

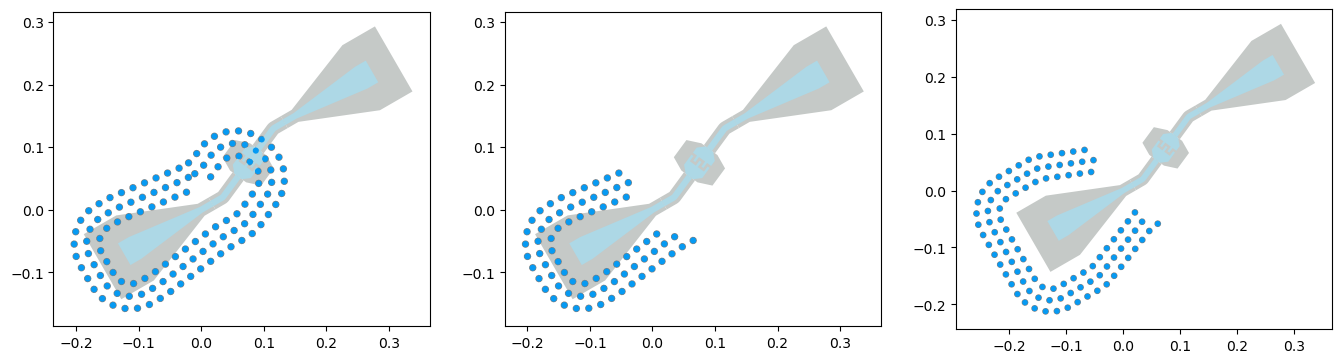

Shielding that scales with the gap-to-metal distance
[48]:
from SQDMetal.Comps.Bounds import BoundGroundShieldScaleGap
from SQDMetal.Comps.Capacitors import CapacitorInterdigitalPinPin
from SQDMetal.Comps.Wires import WirePins
from SQDMetal.Comps.Joints import JointExtend
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='30', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
LaunchpadWirebond(design, 'LP2', options = dict(pos_x='150um', pos_y='150um', orientation='-150', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='20um'))
JointExtend(design, 'jnt1', options=Dict(jointObj='LP1', jointPin='tie', dist_extend='20um', extend_off_pin_dir=True))
JointExtend(design, 'jnt2', options=Dict(jointObj='LP2', jointPin='tie', dist_extend='20um', extend_off_pin_dir=True))
CapacitorInterdigitalPinPin(design, 'leCap', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'jnt1',pin='a'), end_pin=Dict(component=f'jnt2',pin='a')),
cpw_width='15um', len_flat='10um', fing_len='10um', fing_len_gap='4um', fing_wid='4um',
len_diag='10um', fing_wid_gap='4um', N_total=5, larger_first=True))
WirePins(design, 'lead1', options=Dict(pathObjPins=[('LP1', 'tie'), 'jnt1', ('leCap', 'a')], fillet='10um'))
WirePins(design, 'lead2', options=Dict(pathObjPins=[('LP2', 'tie'), 'jnt2', ('leCap', 'b')], fillet='10um'))
fig, axs = plt.subplots(ncols=3); fig.set_figwidth(11)
#BASIC ENVELOPE#############
BoundGroundShieldScaleGap(design, 'bndsGround', options=Dict(include_geoms=['lead1', 'LP1'],
gnd_to_gap_scale=2.5))
############################
QUtilities.plot_highlight_component('bndsGround', design, ax=axs[0])
#EXCLUDE GEOMETRY###########
BoundGroundShieldScaleGap(design, 'bndsGround', options=Dict(include_geoms=['lead1', 'LP1'], exclude_geoms = ['leCap'],
gnd_to_gap_scale=2.5))
############################
QUtilities.plot_highlight_component('bndsGround', design, ax=axs[1])
#EXCLUDE PIN REGION#########
temp = BoundGroundShieldScaleGap(design, 'bndsGround', options=Dict(include_geoms=['lead1', 'LP1'], exclude_geoms = ['leCap'],
exclude_pins=[('lead1', 'end', '100um')],
gnd_to_gap_scale=2.5))
############################
QUtilities.plot_highlight_component('bndsGround', design, ax=axs[2])

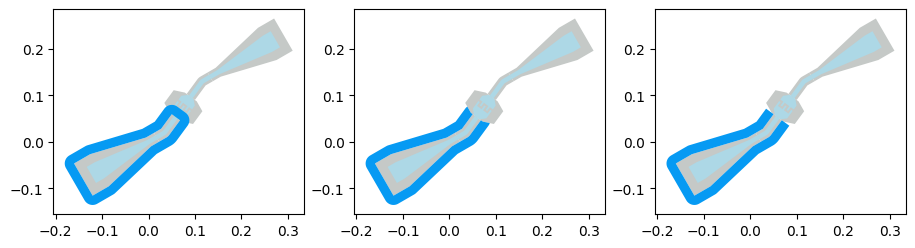

Holes
Holes on borders
Basic borders
[2]:
from SQDMetal.Comps.Holes import HoleBorders
from SQDMetal.Comps.Capacitors import CapacitorInterdigitalPinPin
from SQDMetal.Comps.Wires import WirePins
from SQDMetal.Comps.Joints import JointExtend
from qiskit_metal.qlibrary.terminations.launchpad_wb import LaunchpadWirebond
design.delete_all_components()
LaunchpadWirebond(design, 'LP1', options = dict(chip='main', orientation='30', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='40um'))
LaunchpadWirebond(design, 'LP2', options = dict(pos_x='150um', pos_y='150um', orientation='-150', lead_length='20um', pad_height='20um',
pad_width='40um', pad_gap='40um'))
JointExtend(design, 'jnt1', options=Dict(jointObj='LP1', jointPin='tie', dist_extend='20um', extend_off_pin_dir=True))
JointExtend(design, 'jnt2', options=Dict(jointObj='LP2', jointPin='tie', dist_extend='20um', extend_off_pin_dir=True))
CapacitorInterdigitalPinPin(design, 'leCap', options=Dict(pin_inputs=Dict(start_pin=Dict(component=f'jnt1',pin='a'), end_pin=Dict(component=f'jnt2',pin='a')),
cpw_width='15um', len_flat='10um', fing_len='10um', fing_len_gap='4um', fing_wid='4um',
len_diag='10um', fing_wid_gap='4um', N_total=5, larger_first=True))
WirePins(design, 'lead1', options=Dict(pathObjPins=[('LP1', 'tie'), 'jnt1', ('leCap', 'a')], fillet='10um'))
WirePins(design, 'lead2', options=Dict(pathObjPins=[('LP2', 'tie'), 'jnt2', ('leCap', 'b')], fillet='10um'))
fig, axs = plt.subplots(ncols=3); fig.set_figwidth(16.5)
#BASIC ENVELOPE#############
HoleBorders(design, 'leHoles', options=Dict(hole_radius='5um', dist_holes='20um', dist_init='30um',
num_hole_lines=3, segs_per_circle=12, dist_min='10um',
hole_radius_gnd='6um', border_layers=[1,2,3],
include_geoms=['lead1', 'LP1'], exclude_geoms=[]))
############################
QUtilities.plot_highlight_component('leHoles', design, ax=axs[0])
#EXCLUDE GEOMETRY###########
HoleBorders(design, 'leHoles', options=Dict(hole_radius='5um', dist_holes='20um', dist_init='30um',
num_hole_lines=3, segs_per_circle=12, dist_min='10um',
hole_radius_gnd='6um', border_layers=[1,2,3],
include_geoms=['lead1', 'LP1'], exclude_geoms=['leCap']))
############################
QUtilities.plot_highlight_component('leHoles', design, ax=axs[1])
#EXCLUDE GAPS###############
HoleBorders(design, 'leHoles', options=Dict(hole_radius='5um', dist_holes='20um', dist_init='30um',
num_hole_lines=3, segs_per_circle=12, dist_min='10um',
hole_radius_gnd='6um', border_layers=[1,2,3],
include_geoms=['lead1', 'LP1'], exclude_geoms=['leCap'],
exclude_gaps=True))
############################
QUtilities.plot_highlight_component('leHoles', design, ax=axs[2])
[ ]:
